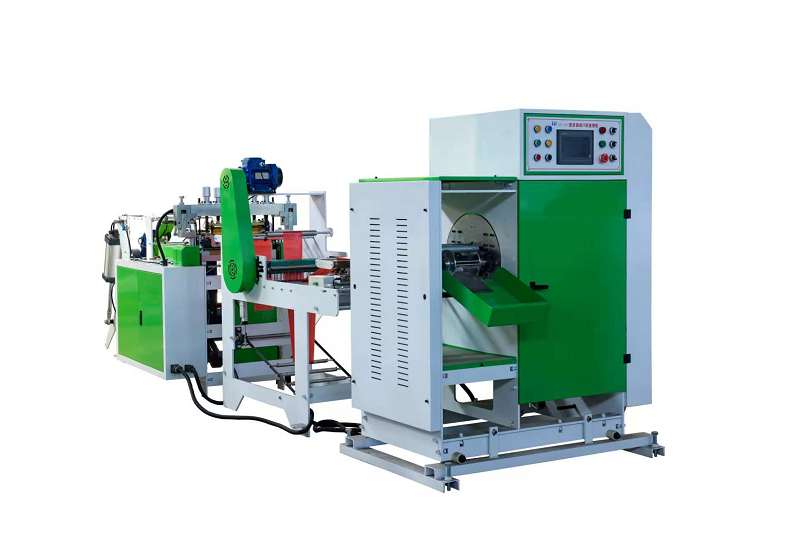

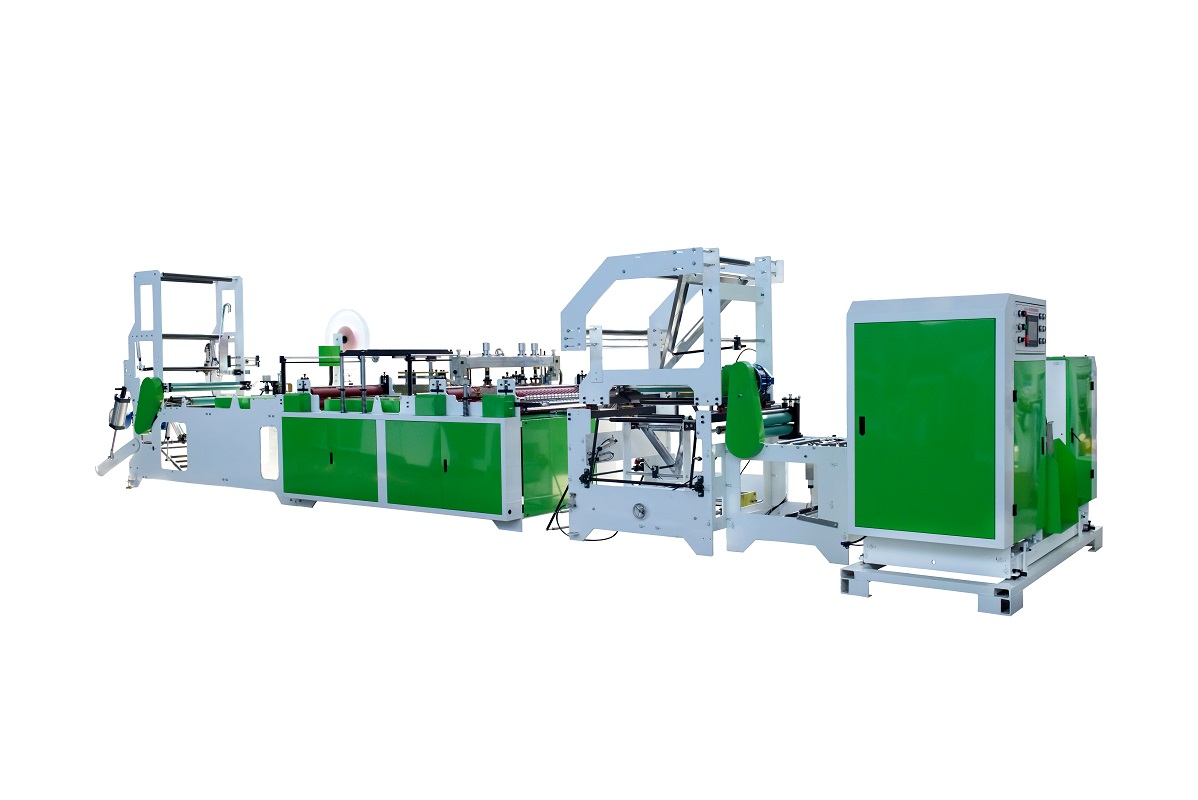

KH-800 automatic drawstring garbage bags making machine

Product Description

This machine is used for producing drawstring garbage bags , which adopt servo motor control, and can easily adjust the length of the bag and the production speed, automatic unwind and rewind, machinery will automaticly stop,when the film runs out, or when the film feeding is blocked, or when the bags get stuck. The rewind system change the roll automaticly.


Features

1.Fully automatic roll forming: The whole process is controlled by computer, no manual intervention required, improving efficiency and saving labor.

2.High-precision control: Servo system combined with photoelectric tracking ensures accurate roll length and creases, as well as consistent sealing and cutting.

3.Easy operation: Touch screen control with fault alarm and automatic roll changing functions, featuring high efficiency.

4.Wide adaptability:It can produce various specifications, compatible with HDPE and degradable materials.


Application





Main performance and technical parameters

Model

KH-800

bag width

400-600mm

bag length

300-650mm

production speed

60-150pcs/ min

film thickness range

0.006-0.025mm

Total power

14kw

Weight

1800kg

overall size

7000*2000*2200mm
